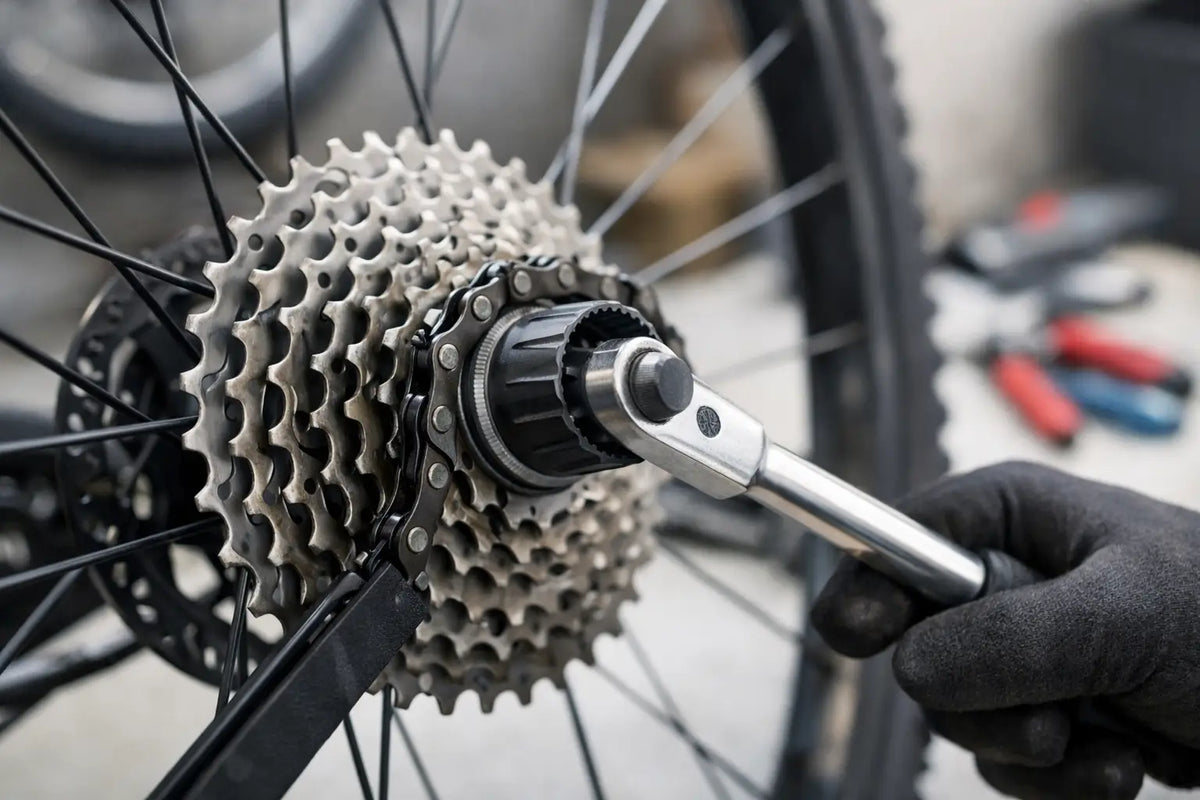

Cassette Removal Tool for Home Mechanics
A worn chain can quickly turn a healthy cassette into an expensive replacement job. The good news is that changing either part is well within reach with a cassette removal tool for home mechanics, provided you choose the correct fitting and use it with controlled leverage. This is not workshop-only work. It is a practical skill that keeps your drivetrain quieter, shifting cleaner and your bike ready for the next road, gravel or trail ride.
What a cassette removal tool actually does
Your cassette is secured to the freehub body by a lockring. A cassette lockring tool engages with the splines in that lockring so you can loosen it with a ratchet, breaker bar or adjustable spanner. The lockring is tight, and it tightens further under pedalling forces, so the tool must fit accurately and be made to withstand high torque.
The removal tool works alongside a chain whip or cassette pliers. While you turn the lockring anticlockwise, the chain whip holds the cassette still. Without it, the freehub simply rotates and nothing comes loose. It is a simple two-tool operation, but getting both tools right makes the difference between a clean ten-minute job and rounded splines, scraped knuckles and a cassette that refuses to move.
A professional-grade tool is worth having because cassette work puts real load through the tool interface. Compact may be useful for storage, but the business end should be hardened steel with crisp, full-depth splines. A thin, poorly machined tool can slip under torque and damage the lockring - a small saving that creates a much bigger problem.
Choosing a cassette removal tool for home mechanics
Compatibility comes first. Many Shimano and SRAM HG-style cassettes use the familiar 12-spline lockring pattern, which is the standard most home mechanics encounter. However, a cassette is not defined only by the number of speeds. The freehub standard, cassette manufacturer and lockring design all matter.
Before ordering a tool, identify the cassette and driver body on your wheel. Check the manufacturer markings where possible, and do not assume that a tool which fitted your previous bike will fit the new one. This is particularly relevant if you own a mix of road, mountain bike and gravel machines.
The main compatibility points are:
- Shimano HG and many SRAM HG cassettes: commonly use a standard 12-spline cassette lockring tool.
- Shimano Micro Spline: may require a specific compatible lockring tool, depending on the lockring design.
- SRAM XD and XDR: use a different interface and commonly require an appropriate hex key rather than a conventional cassette lockring tool.
- Campagnolo: uses its own lockring spline pattern, so it needs a dedicated Campagnolo-compatible tool.
Buy the working setup, not just one socket
A lockring tool alone will not remove a cassette. For a dependable home setup, pair it with a chain whip or quality cassette pliers, plus a suitably long ratchet or breaker bar. A torque wrench is valuable for refitting, especially if you already use one for stems, seatposts and carbon components, although the torque range for cassette lockrings is higher than that of many compact bicycle torque keys.
Chain whips remain a straightforward, highly effective choice. Select one with a comfortable handle and a length that gives you leverage without making it awkward to control. Cassette pliers can be quicker to position and are useful when servicing several bikes, but they need to grip a suitable sprocket securely. Either option works well when used properly.
For the most efficient home workshop, keep the cassette tool, chain whip, chain wear gauge, chain tool and a small brush together. These are linked jobs. Measuring chain wear early and replacing a tired chain before it damages the cassette is one of the best-value habits a cyclist can build.
How to remove a cassette cleanly
Start with the wheel out of the bike and laid flat on a clean bench, mat or folded towel. Shift into a smaller sprocket before removing the wheel if possible. This gives the derailleur more clearance and makes wheel removal easier.
Place the cassette removal tool fully into the lockring. It should sit squarely, with no visible tilt. If it will not seat properly, stop and check whether the lockring has a different spline standard, whether a guide pin is obstructing the axle, or whether dirt is packed into the splines.
Position the chain whip on one of the larger sprockets, with the handle arranged to resist the cassette turning as you loosen the lockring. The exact handle positions depend on your workspace, but the goal is controlled opposing force: the chain whip holds the cassette, while the ratchet turns the lockring tool anticlockwise.
Apply steady pressure rather than a sharp hit. A lockring often breaks free with a firm crack, which is normal. Once loose, remove the chain whip, spin off the lockring and lift the sprockets and spacers from the freehub. Keep them in order if you plan to refit the same cassette. Some cassettes are supplied in carriers, while others separate into individual sprockets and spacers.
If the lockring feels immovable, check your direction before using more force. Viewed from the drive side, removal is anticlockwise. Make sure the tool is fully seated and use a longer handle for leverage rather than putting your body weight into a short spanner at an awkward angle.
Refitting without poor shifting or damaged threads
Clean the freehub splines before installing the cassette. Wipe away old grease and grit, then inspect for deep notches or burrs. Light marks on an aluminium freehub body are common, but severe damage can make sprockets difficult to remove and may affect fit.
Apply only a light film of suitable grease to the freehub splines if recommended by the hub manufacturer. Slide the sprockets on in the correct order, aligning the one wider spline with the corresponding wider groove on the freehub. Never force a sprocket into place. If it does not slide on, it is probably misaligned or a spacer is missing.
Thread the lockring in by hand first. This is essential. It confirms that the threads have engaged properly and prevents cross-threading an expensive cassette or freehub component. Tighten it with the cassette tool to the torque specified by the cassette manufacturer, using a torque wrench with an appropriate range where possible. Chain whip assistance is not normally needed when tightening because the freehub resists rotation in the tightening direction.
Before putting the wheel back in the bike, spin the cassette by hand and check that no sprocket or spacer is sitting proud. Once installed, shift through every gear under light pedal pressure. If shifting is suddenly poor after a cassette change, first check that the wheel is correctly seated, the axle is fully secured and the cassette specification matches the chain and drivetrain.
Common mistakes worth avoiding
The most common mistake is buying a generic-looking tool without checking the freehub standard. The second is using an adjustable spanner with too little contact or leverage, which can round the flats on the tool. A secure ratchet or breaker bar is safer and more precise.
Another frequent error is using the chain whip on too small a sprocket. The chain has less contact there and can slip. Use a larger sprocket with plenty of chain engagement, keep fingers clear of the teeth, and wear gloves if you prefer extra grip around oily components.
Avoid reusing a badly worn chain with a brand-new cassette. It may skip under load, especially on your most-used sprockets, and can shorten the life of the new cassette. A chain wear gauge is a compact tool that helps you make the replacement decision before wear spreads through the drivetrain.
Build confidence one service at a time
A cassette removal tool earns its place in a home maintenance kit because it gives you control over one of the bike's most costly wear systems. Choose the correct spline, add a solid holding tool and use measured force. Then cassette changes become routine maintenance rather than a reason to book workshop time.
Keep the setup clean, store it with your other precision tools, and use the next chain replacement as your reason to practise. A few well-chosen tools from Velo-Tool can turn that first cautious job into a quick, capable part of looking after every bike you ride.
